2025 Argo Magnum XF 500 LE peinture orange vif

Specifications

Model	Magnum	Category Name	UTV - Side x Side	Year	2025
Sale Type	New	Manufacturer	Argo	Color	peinture orange vif
Odometer	km	WIDTH	56.7 IN (1,440 MM)	HEIGHT	72.8 IN (1,850 MM)
LENGTH	106.3 IN (2,700 MM)	BATTERY	12V 18ah AGM	IGNITION	ECU
LIGHTING	DUAL 12V 35 W HIGH/LOW BEAM DUAL WITH BRAKE LIGHT	WHEELBASE	72 IN (1,829 MM)	DRY WEIGHT	1,232 LBS (559 KG)
WET WEIGHT	1,278 LBS (580 KG)	FINAL DRIVE	SHAFT DRIVE	FUEL SYSTEM	EFI
SEAT HEIGHT	32.9 IN (836MM)	BRAKE - REAR	HYDRAULIC DISC	DISPLACEMENT	443CC
START METHOD	ELECTRIC START	BORE X STROKE	89 X 71.2 MM	BRAKE - FRONT	DUAL HYDRAULIC DISC
ENGINE STROKE	4-STROKE	COOLING SYSTEM	LIQUID	GROUND CLEARANCE	10 IN (254 MM)
TIRE SIZE (REAR)	AT25X10-12	COMPRESSION RATIO	9.1:1	DRIVE SYSTEM TYPE	ELECTRONIC 2WD/ 4WD /LOCK
SUSPENSION - REAR	INDEPENDENT DOUBLE A-ARM	TIRE SIZE (FRONT)	AT25X8-12	TRANSMISSION TYPE	CVT AUTOMATIC
FUEL TANK CAPACITY	8.5 GAL (32 L)	SUSPENSION - FRONT	INDEPENDENT DOUBLE A-ARM	VALVE CONFIGURATION	4 VALVE
CYLINDER ARRANGEMENT	SOHC SINGLE-CYLINDER	Price	Contact for price CAD

Description

GET AFTER ALL OF THOSE PROJECTS IN SYTLE.

We get it. Doing hard work, well, is hard work. That’s why you need to experience the ARGO Magnum XF 500 LE to get things done faster. At ARGO, we combine fun and function with our premium side-by-sides. The fun starts with the dependable 443cc liquid-cooled EFI engine for plenty of performance and is anchored by the automatic CV transmission with engine braking for a smooth, safe ride.

The heavy-duty rear dump box gives you the ability to haul your equipment, landscaping rocks or coolers to the dock. The Magnum XF 500 LE includes aluminum rims, electric power steering (EPS), a durable 3,000 lb. winch and premium painted plastic body panels. We guarantee people will show up to help out with your projects when the Magnum XF 500 LE is in your driveway.

FEATURES

XF 500 Engine

The rugged 443cc 4-stroke SOHC engine comes liquid cooled and features electronic fuel injection (EFI). Responsive and fuel efficient, this engine is ready to go to work on and off the trail.

Suspension: Front & Rear Independent Double A-Arm

The Magnum XF models feature a independent double A-arm front and rear suspensions with 7.5” of travel for premium comfort and control in all riding conditions. With 10” of ground clearance and adjustable preload shocks, riders can easily make adjustments to match their riding style and load carrying requirements.

25” Duro Power Grip Tires

Outfitted with premium 25” Duro Power Grip tires seated on aluminum wheels with the LE package, these aggressive off-road tires provide superior traction when venturing off road into unknown territory.

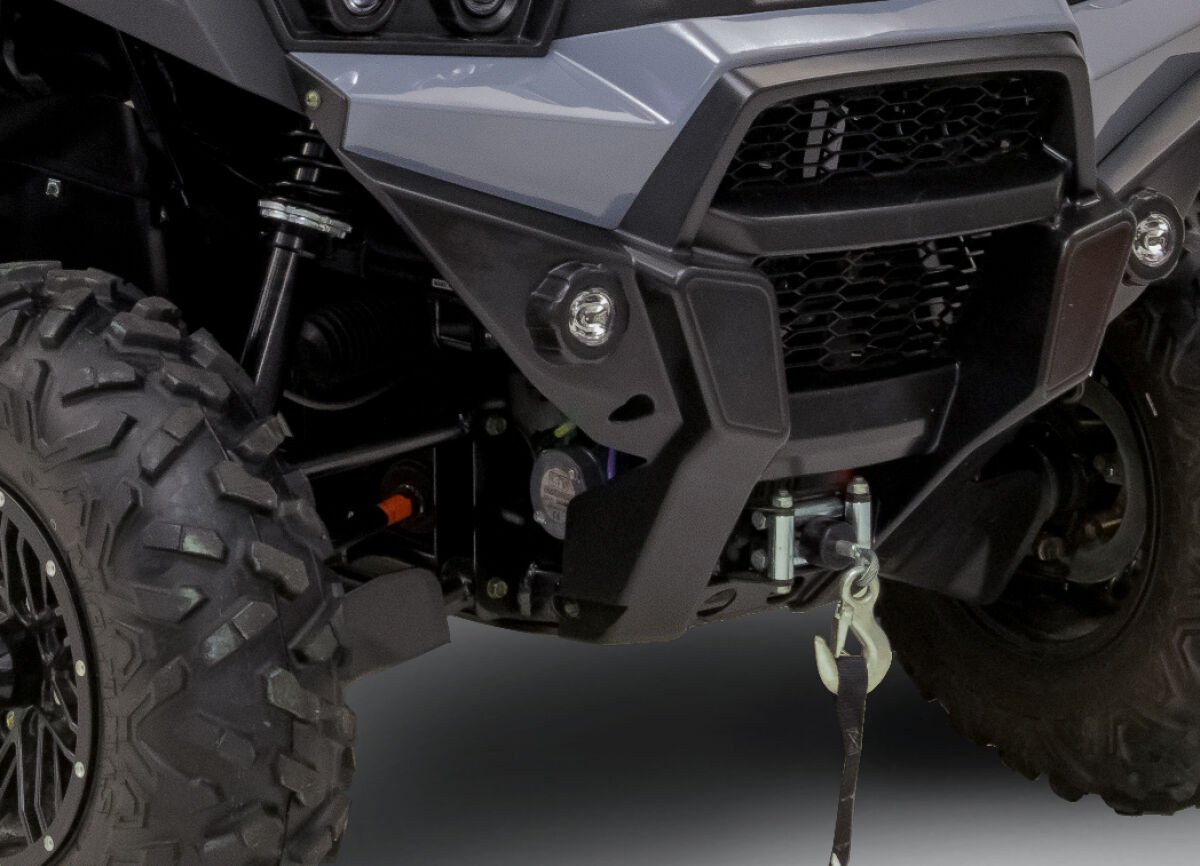

3,000 LB. Winch

Pulling power for when you need it most. ARGO’s winch mounts on the front to assist with high-angle extractions of equipment or debris. With 3,000 lb capacity, extra muscle is within reach at all times.

Adjustable Tilt Steering Wheel

Installed with operator comfort in mind, the adjustable tilt steering wheel can be adjusted to accommodate the size of the operator.

Instrumentation

Digital instrument panel with odometer, speedometer, tripmeter, RPM, transmission position, 2wd/4wd/lock indicator, APS indicator, fuel guage, temperature, low-battery, high beam light and check engine lights.

Hitch & Towing Capacity

The 2" rear receiver hitch is backed by a 1,200 lb. (546 kg) towing capacity making it the perfect workhorse for both recreation and utility applications.

Rear Cargo Box with Rubber Box Mat

Built for versatile applications, the Magnum Series Side-by-Sides come standard with a utility cargo box equipped with a tilt assist shock and a 441 lb. load capacity. Additionally, the cargo box is outfitted with a rubber bed mat giving the cargo space added grip and protection.

Storage

Offering added cargo space within the Magnum Series, additional storage is available within the dump box tailgate. You heard that right, stow away your added tools and items within the closable tailgate storage. As well as under the hood, seat and a glove box.
